Micropiling Melbourne — Deep Foundation Solutions Where Others Can't Reach
Some foundation issues are simple, the site is clear, and traditional underpinning or screw piling machinery can get in and complete the job without difficulty. However, it is much more common for us to be contacted about foundation work that does not fit this description.
Examples include tight inner-city sites; low clearance subflooring; occupied commercial buildings where construction is to occur around working machinery and fit-outs; and heritage structures where shaking the existing structure is not acceptable. These are the situations where traditional foundation processes do not work and micropiling flourishes.
At Harman Contracting, we have extensive knowledge of micropiling and have invested in custom-built micropiling equipment to ensure we can effectively complete foundation projects that are very challenging with limited access throughout Melbourne. If you have been advised that a foundation problem is unresolvable because of site conditions, micropiling might be the ideal option.
What Is Micropiling?
The micropiling or minipiling technique for deep foundations consists of the use of small cross-sectional area high strength piles to transfer the structural loads of a building/structure through unstable/problematic soil to stable load bearing stratum below it.
Micropiles are installed using compact specialist equipment which can work in locations where full size foundation equipment cannot work. The small diameter of the micropile, typically ranging from 100mm to 300mm, allows it to be engineered to sustain large structural loads through a combination of high strength steel and grout.
Micropiles were originally developed for the use of restricted access, and low headroom environments and this remains their key advantage. They provide the required deep foundation support, where there is no other pile installation method that may be feasible.
How Does Micropiling Work?
Step 1: Assessing The Site And Designing Engineering
A full examination of the site conditions is performed before any micropile project begins. This includes assessing soil conditions, determining the depth of stable ground, evaluating structural loads, and identifying site constraints such as limited headroom, restricted access, or other obstacles that may affect installation. Following this assessment, a micropile design is developed in consultation with a structural engineer to ensure the system is capable of safely supporting the required loads.
Step 2: Drilling For Micropiles
A small-diameter hole is drilled to the required depth using specialised micropile drilling equipment. The equipment is selected to suit the specific access conditions of the site, allowing installation in low-clearance subfloors, confined commercial spaces, narrow access corridors, and other restricted environments where conventional piling equipment cannot operate.
Step 3: Reinforcing And Grouting The Hole
Once the hole has been drilled to the required depth, a high-strength steel reinforcing bar or tube is installed within the bore. Cement grout is then injected under pressure around the reinforcement, creating a strong bond between the steel and the surrounding ground. This forms a composite pile capable of transferring structural loads to stable load-bearing soil at depth.
Step 4: Connecting the Micropiles to the Structure
After the grout has achieved the required strength, the pile head is connected to the existing structure. This may involve underpinning an existing footing, connecting to a new pile cap, or supporting another structural element. The connection method used will depend on the engineering design and the specific requirements of the project.
Step 5: Certification and Completion

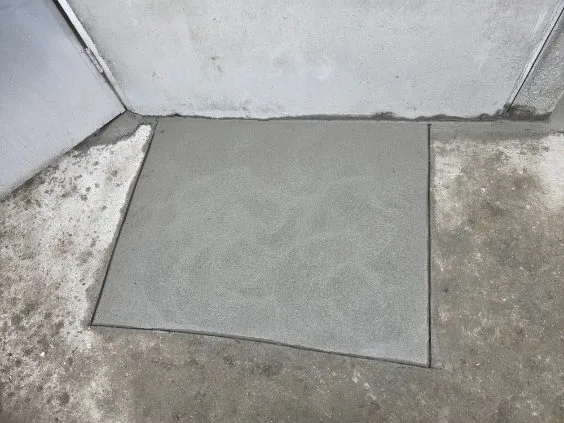

Upon completion, certification is provided confirming that the micropiles have been installed in accordance with the approved engineering design and are capable of supporting the required structural loads. The site is then cleaned and reinstated, with minimal visible evidence of the significant structural work completed below ground.
Where Micropiling Is Used
Low Ceiling Areas of Construction
Standard piling and underpinning equipment often requires more working height than is available beneath older homes with limited subfloor clearance. Micropiling rigs are specifically designed to operate in low-headroom environments, allowing deep foundation support to be installed where conventional equipment cannot be used.
Limited Access Sites
Inner-city properties, terrace homes, and sites accessed through narrow passageways or confined indoor spaces often cannot accommodate traditional foundation equipment. Micropiling systems can be transported in smaller components and assembled on site, making them ideal for restricted-access locations.
Buildings in Use
When foundation work is required within occupied residential or commercial buildings, minimising disruption is essential. Micropiling generates significantly less noise and vibration than many traditional foundation methods, making it a practical solution where day-to-day activities need to continue during construction.
Heritage Properties
Heritage buildings are well suited to micropiling because the installation process involves minimal vibration, reduced disturbance, and a smaller construction footprint. This helps protect the integrity of the existing structure while providing reliable foundation support.
High Load Requirements in Confined Spaces
Micropiles can be installed in groups to support substantial structural loads within restricted areas. As a result, they are widely used not only for residential underpinning but also for commercial and industrial projects where significant loads must be transferred to stable bearing strata in confined spaces.
Complex Ground Conditions
Where ground conditions make conventional piling or excavation methods impractical, micropiling provides a flexible alternative. The drilling process can often navigate difficult subsurface conditions more effectively than traditional piling techniques, allowing foundation support to be installed safely and efficiently.
Micropiling for Residential Properties
Micropiling is the best solution for residential properties where access and/or headroom prevent the use of traditional underpinning methods. In Melbourne, there are many areas with older housing including the period Victorian and Edwardian terraces that are often problematic for the use of traditional underpinning methods. An example would be a terrace house with low sub-floor space, limited side access and many years of ground movement due to the existing foundation’s construction.
Through our experience completing micropiling on residential properties throughout Melbourne’s inner suburbs we have provided residential building owners with robust deep engineered foundations where other builders have been unable to find an access route or solution.
Our micropiling projects span all residential property types including; Victorian terraces, Edwardian bungalows, Federation Cottages, post-war homes and modern inner city townhouses. Each micropiling project is tailored to the environmental conditions of each site, and the completed work is guaranteed to have engineering certification.
Micropiling for Commercial & Industrial Properties
Commercial and industrial micropiling applications can be much more complicated than residential applications because they generally involve much larger loads, much more difficult ground conditions, and the requirement to complete the work in or around the existing operational facility — all of which create multiple layers of complexity on a given micropiling job.
With our capabilities in micropiling, we have completed many commercial and industrial micropiling projects throughout Melbourne — even in situations where micropiling needs to be completed inside an operational warehouse or factory around existing machinery and fit-out, while causing minimal disruption to the overall business operations of surrounding areas.
On commercial micropiling projects, we work with structural and geotechnical engineers from the very beginning to ensure that the micropile design will match the load requirement of the proposed structure and that the installation methods used are appropriate for the site conditions. We also ensure that the final micropiling product is documented and that all parties involved in the project have properly certified the micropiling design, installation, and finished product.
Micropiling vs Screw Piling — Which Is Right for Your Site?
Both micropiling and screw piling are compact, access-friendly foundation methods, but they operate differently and are suited to different site conditions.
Micropiling is typically the better choice when:
- Headroom is very limited — micropiling rigs can operate in lower clearances than screw piling equipment
- The soil conditions include obstructions, variable fill, or conditions that make rotary installation difficult
- Very high loads need to be carried in a confined space
- The site requires the absolute minimum equipment footprint
- Working inside an occupied building where vibration needs to be minimised
Screw piling is typically the better choice when:
- Soil conditions are suitable for helical installation
- Speed of installation is a priority
- Immediate load bearing is required without waiting for grout to cure
- The site has reasonable access but conventional excavation isn’t preferred
In some projects, both methods may be used together — micropiling in the most restricted access areas and screw piling where site conditions permit. The most appropriate solution depends on the specific requirements of the site, structural loads, access constraints, and ground conditions.
Our Micropiling Equipment
Our micropiling capability has been built around the specific challenges that Melbourne’s inner-city and access-restricted foundation work presents. Our equipment includes:
- Compact micropiling rigs configurable for low headroom environments
- Equipment capable of being broken down and transported through restricted access points including standard doorways
- Drilling tooling appropriate for Melbourne’s variable soil conditions
- High-pressure grouting equipment for pressure-injected grout installation
- Full range of reinforcement options from solid bar to hollow bar systems
Every piece of our micropiling equipment has been selected for its capability in the kind of tight, confined access situations that Melbourne’s housing and commercial stock regularly presents — not just for open-site performance.
Why Choose Harman Contracting for Micropiling in Melbourne?
- Specialist micropiling capability — purpose-built equipment configured for Melbourne’s most access-restricted sites
- Engineering certified — every micropiling project is backed by structural engineering design and completion certification
- Residential & commercial experience — we’ve delivered micropiling solutions across a wide range of property types and project scales
- Heritage property experience — we combine micropiling’s low-vibration advantage with the sensitivity required for heritage work
- Full project management — from initial assessment and engineering design through to installation and certification
- Fully insured — registered builders with full public liability coverage
- Family-run business — honest advice, direct communication, genuine commitment to quality
- Free on-site assessment — we come to your property, assess the site conditions and access constraints, and give you a clear, honest quote
